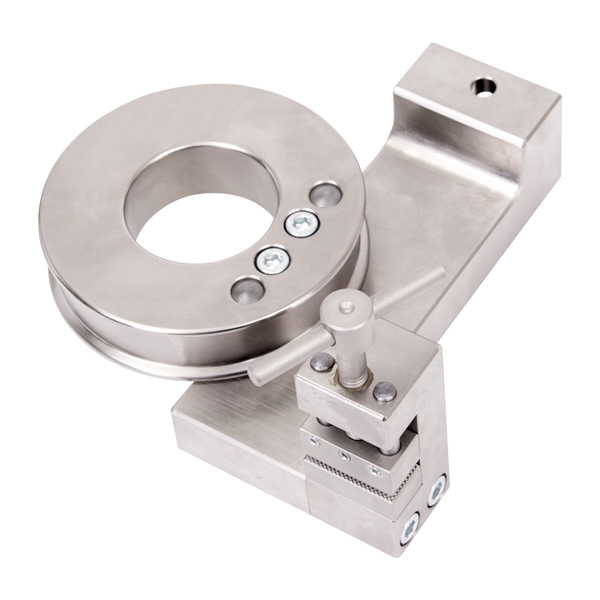

High Capacity Wire / Rope Grip
G1092

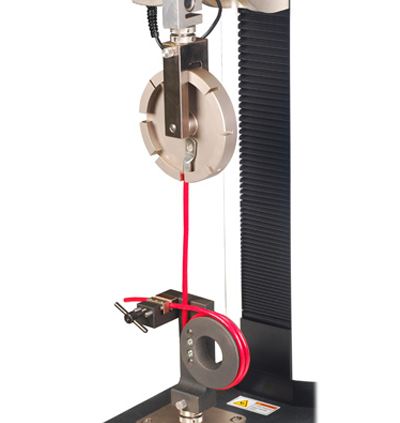

Designed for high capacity wire and rope pull testing applications. Secures the free end of the sample via a bollard and vise.
Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.
Features
- Bollard / capstan design effectively secures wire, rope, and other samples
- Eye end mounting
Specifications
- Capacity lbF [kN]:
2,000 [9] - Weight lb [kg]:
6.0 [2.7] - HS code:
9024800000 - ECCN:
EAR99 - Country of origin:
USA
Optional Equipment
|
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges. |

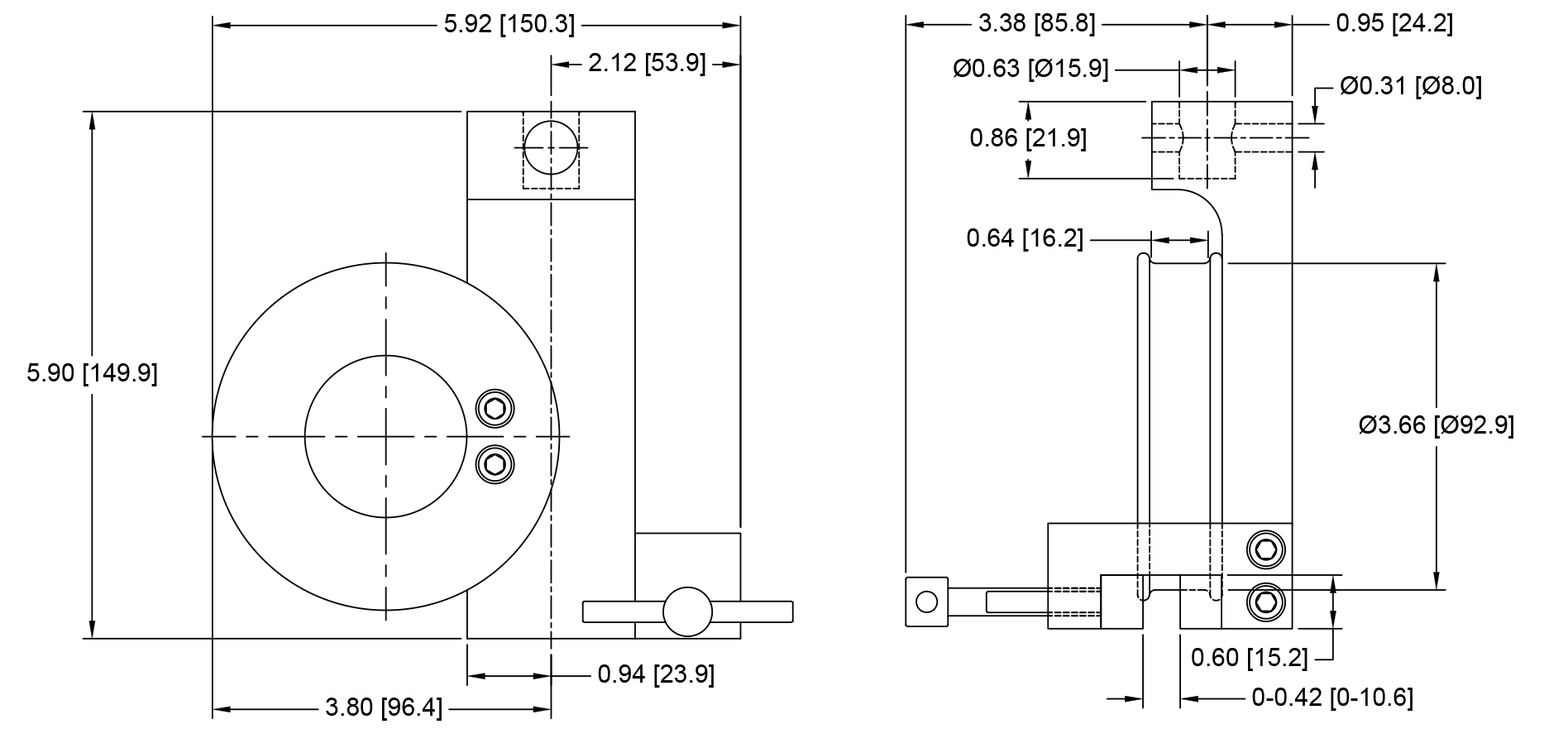

Dimensions
IN [MM]
Ordering Information
| Model | Description | US Price |
|---|---|---|
| G1092 | High capacity wire / rope grip, eye end | $930.00 |
